01
Capture

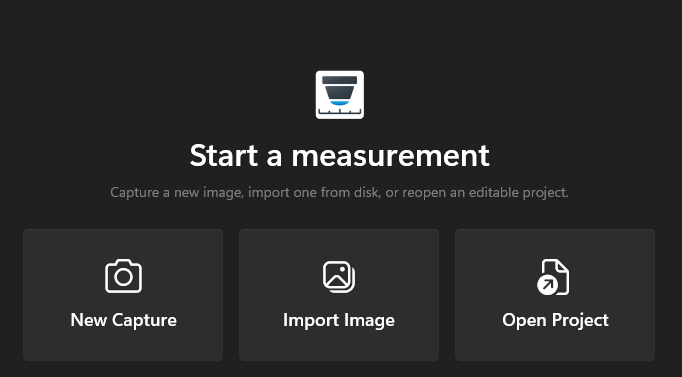

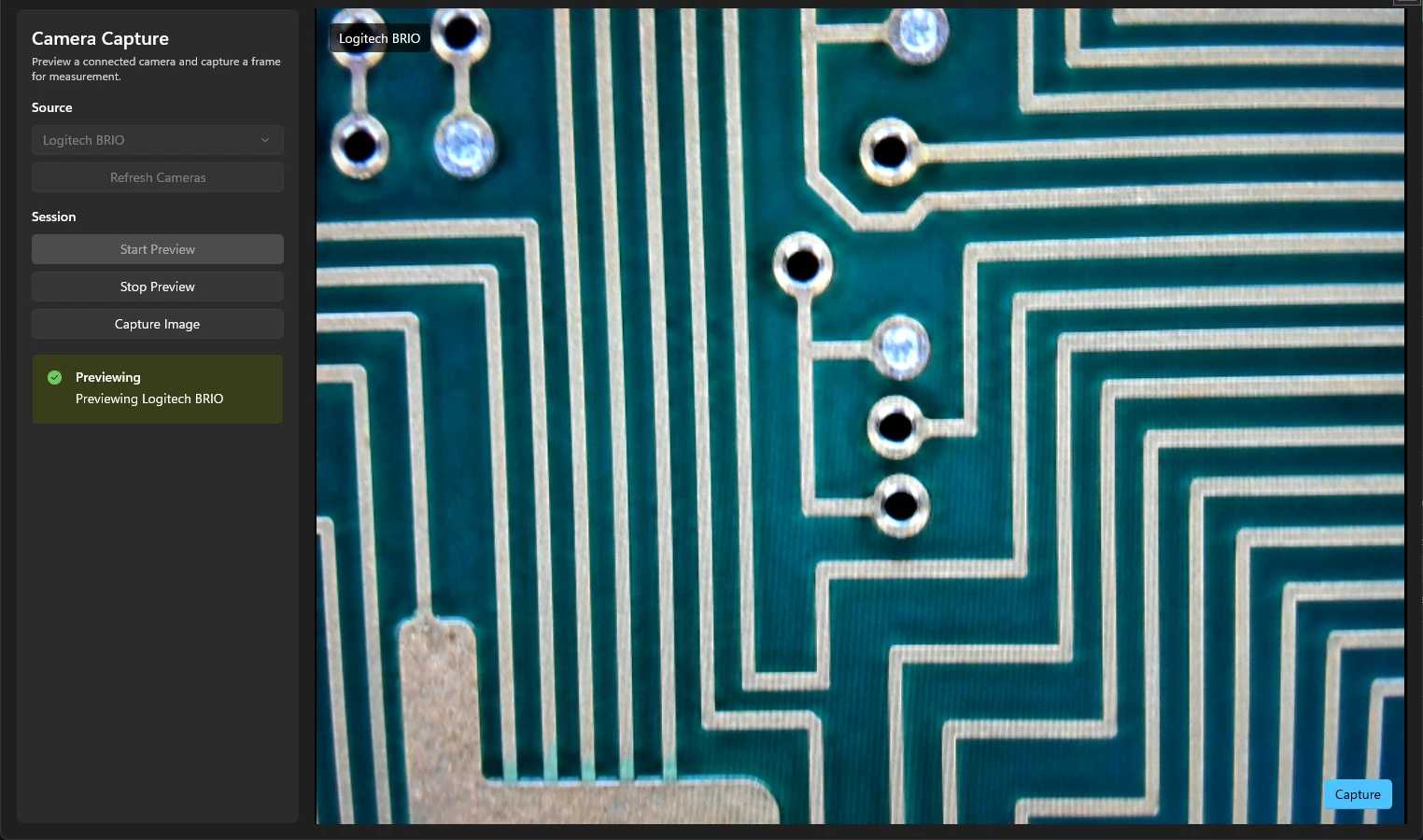

Pick a camera, watch the live preview and grab a frame when the part is in focus. Capture runs over Media Foundation and DirectShow. Or skip the camera and open a PNG, JPEG, TIFF or BMP.
Measure from any camera or image file.

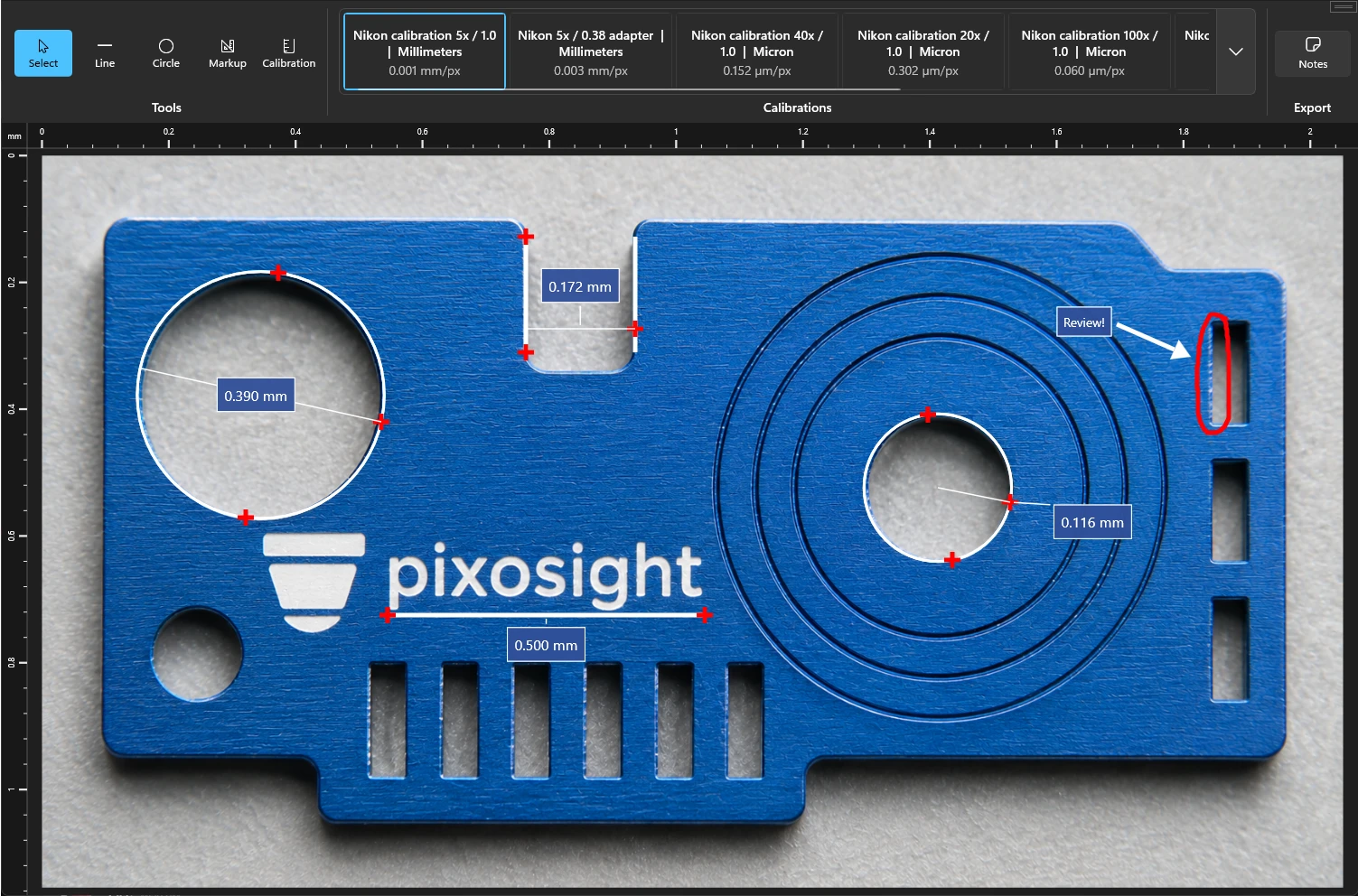

A Windows measurement app. Calibrate against something of known size, draw on the image, and read real-world values.
30 days free. No card required; purchase separately when ready. Windows 10 and 11.
How it works
Capture, calibrate, measure, export.
Point a camera at the part or open a file you already have. Calibrate once for the setup, draw the geometry, and send the result out with the measurements on it.
02
Calibrate once per optical setup

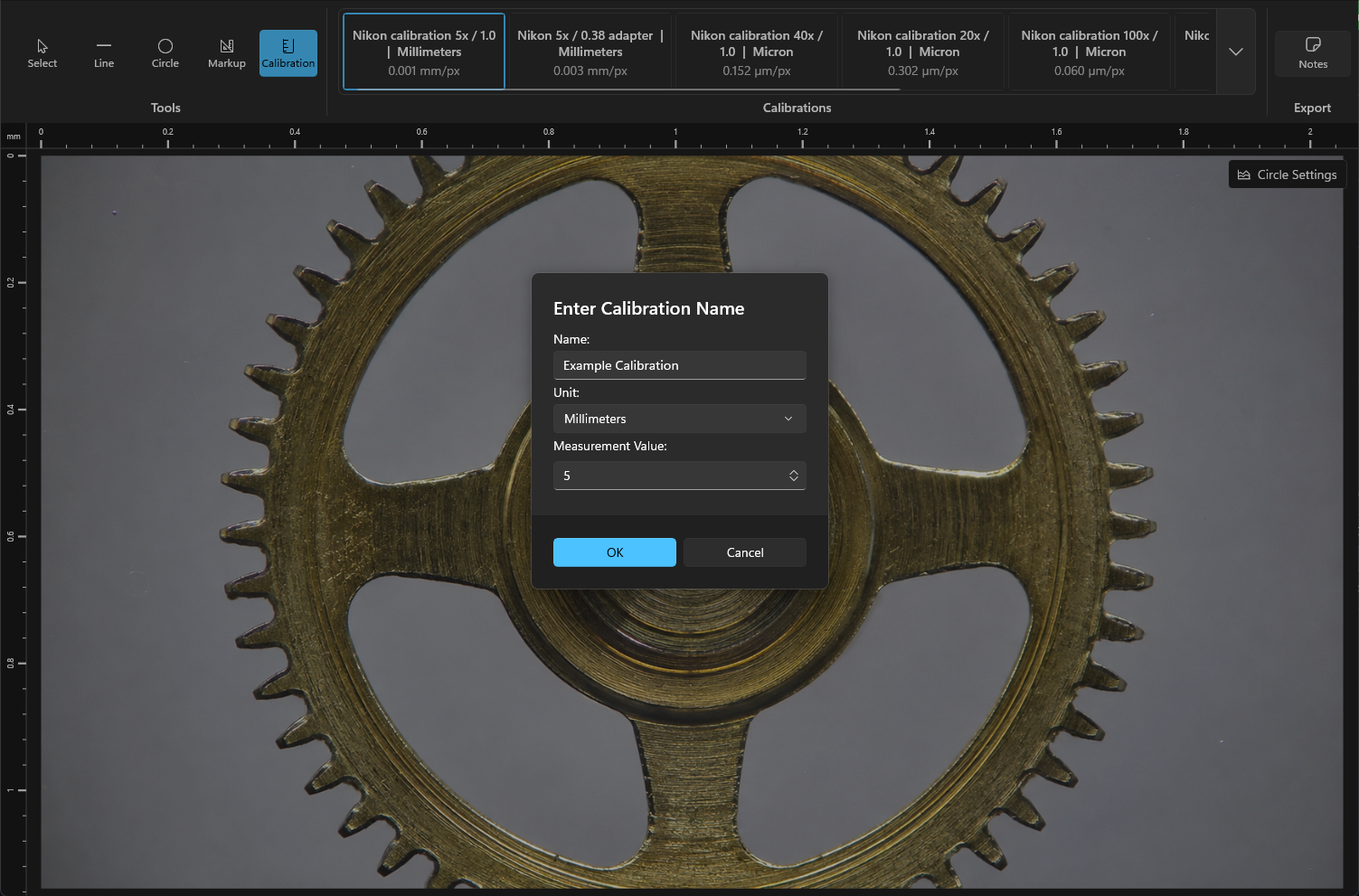

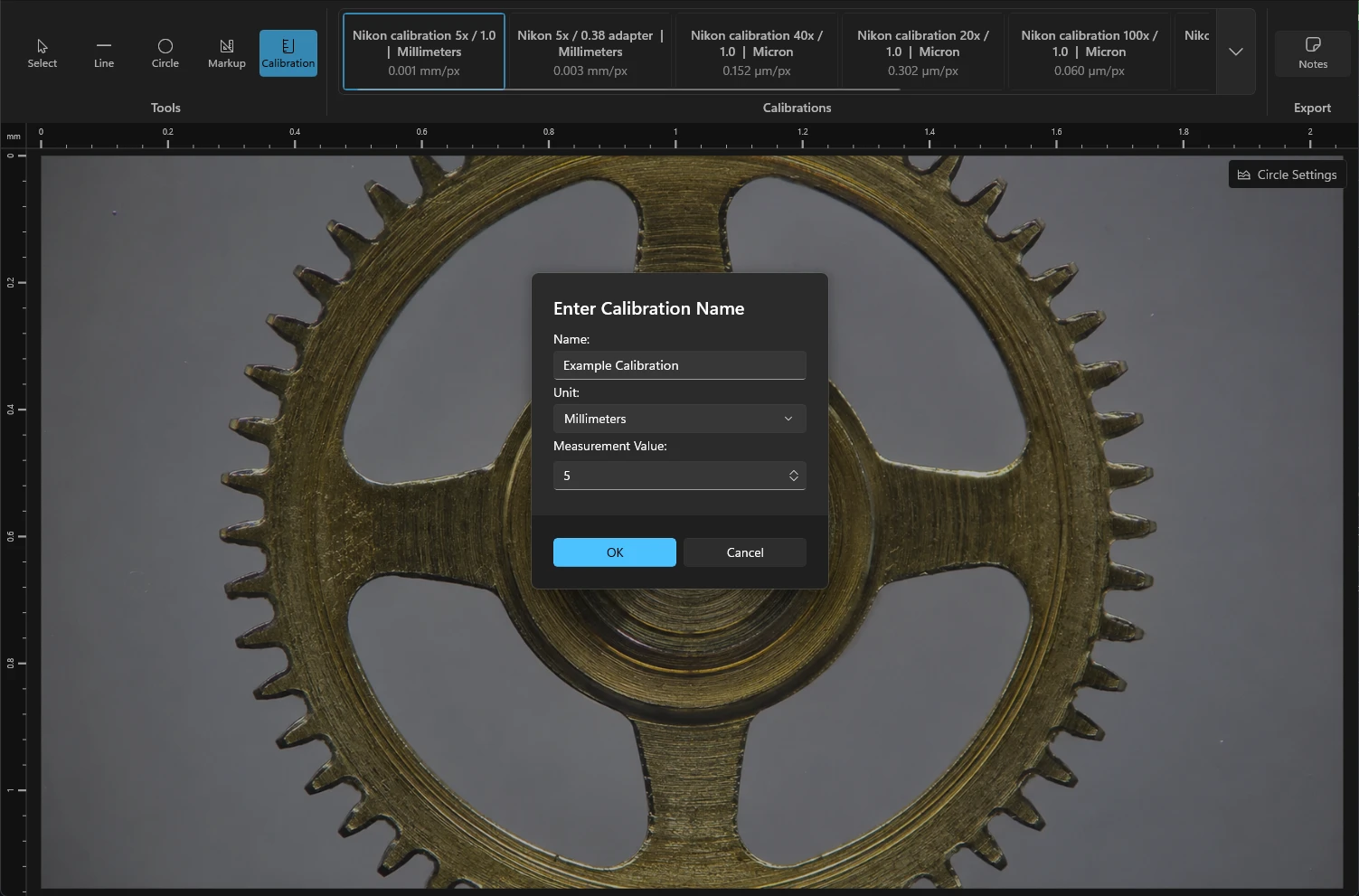

Measure something in frame whose size you know, enter the real value, and name the profile. Keep the setup and it loads every session after.
03
Five measurement tools

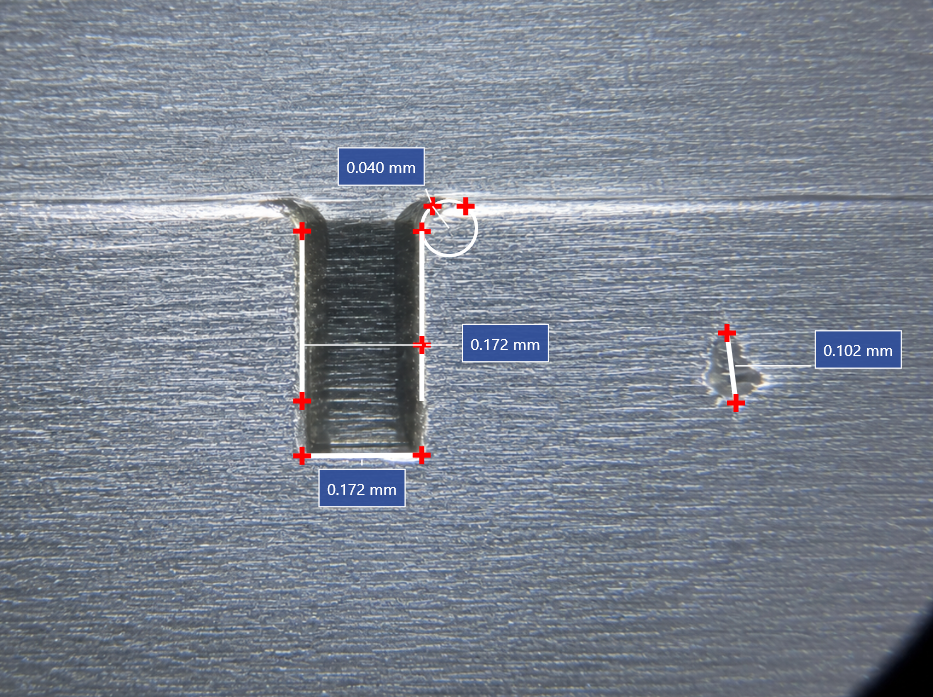

Distances, diameters, gaps between edges, rings that share a center or fit on their own, and coating thickness from a ball crater. Results update as you draw.
A unit for every measurement
Each result keeps its own unit and precision, up to six decimal places.
Arrow, Draw and Text Box
Mark what matters. Select anything to change it, and undo covers every edit.
Sessions save to a project
A .pxst file keeps the image, calibrations, measurements, annotations and notes.
04 · Export
The measurements go out with the image.

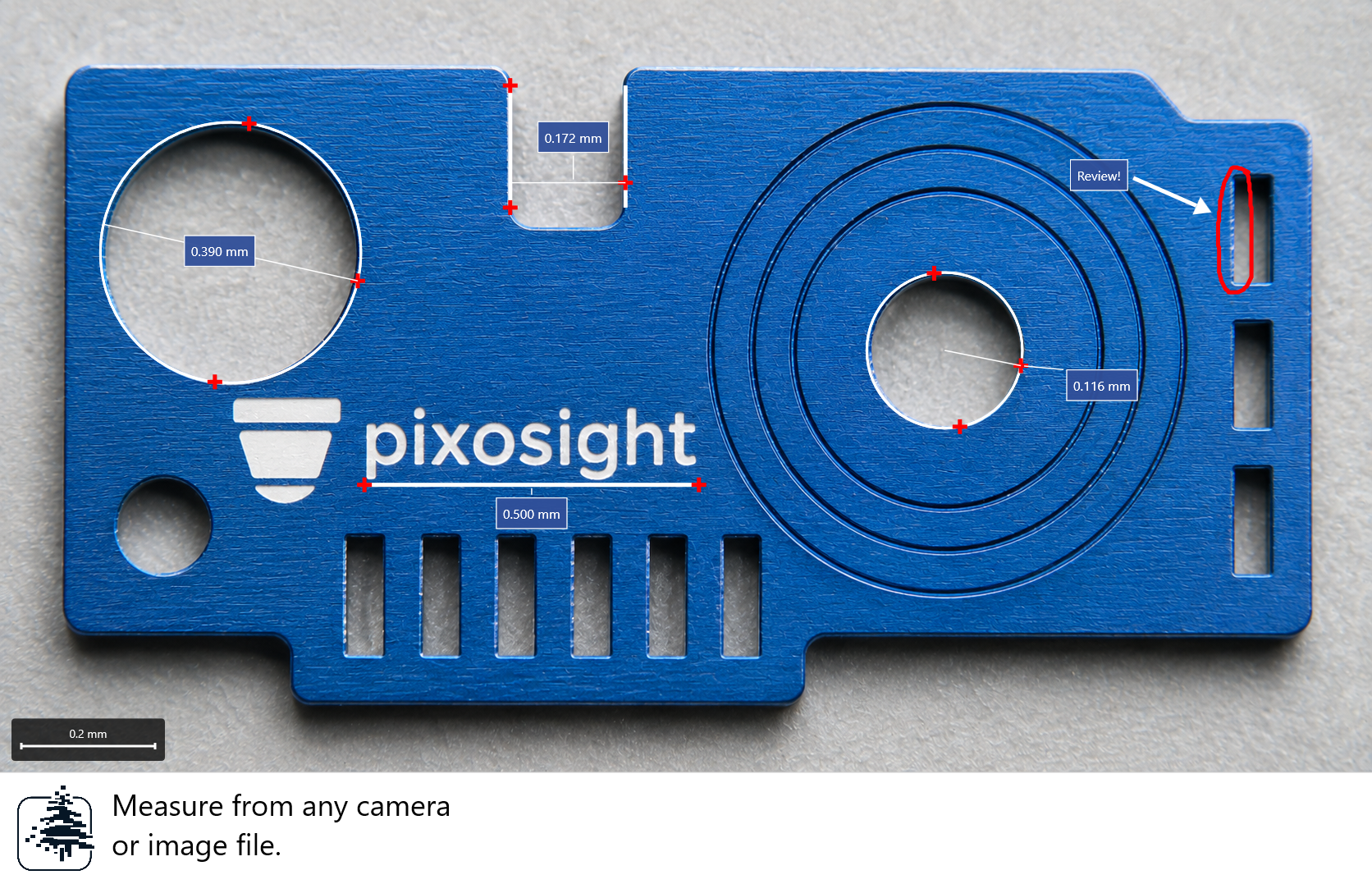

Export a PNG, JPEG, TIFF or BMP with every measurement and mark drawn in, plus whatever the reader needs to trust it.
- A scale bar
- Your watermark, placed and faded to suit
- A timestamp and notes strip, top or bottom
- Cropped to the annotated area, or the whole frame
Coatings and thin films

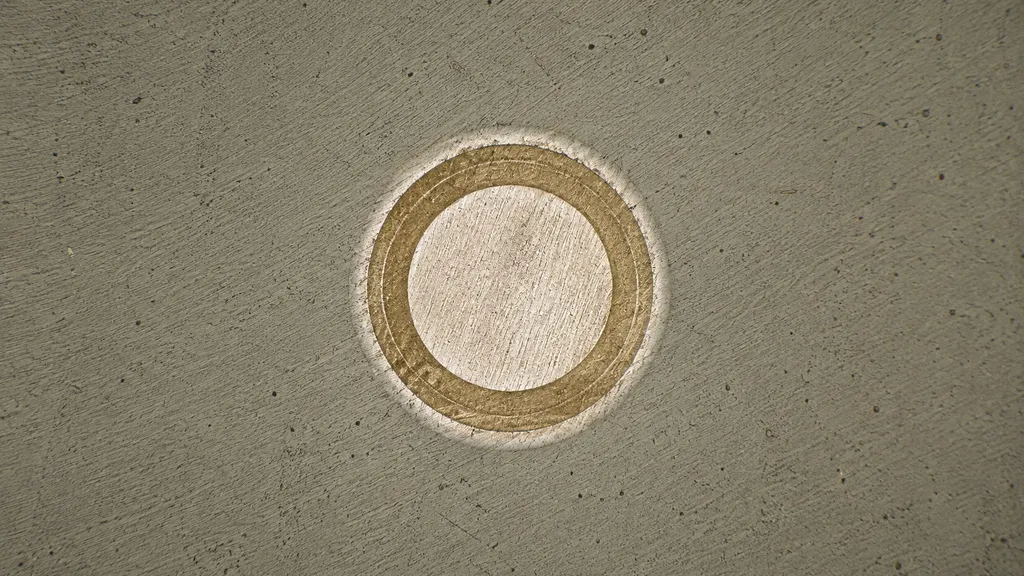

Ball crater measurement is built in.
Coating thickness comes straight from the crater geometry, for a single layer or a stack of them. Each layer gets its own label.
- Single layer or multilayerOne tool for both, with the layer count set per crater.
- A label for each layerName the layers your way. Connectors attach each label to its own ring.
- Change it laterReselect a crater to add or remove layers without drawing it again.
Getting started
How you get it.
Start a trialCreate a workspace, no card required
Accept your invitationFinish account setup from your email
InstallPortal downloads
ActivateYour key, on first run
Air-gapped machine? Ask us about offline activation.
Cameras Windows already seesIf a camera shows up in another capture app, it should show up here. Some need the maker's driver package first.
The PC you already haveOne activation covers every Windows user on the machine, and they share its calibration profiles.
Profiles that travelExport calibration profiles as JSON and import them on the next bench.
Regular updatesSubscriptions get every new release, including future major versions.
Pricing
Subscription or perpetual.
Subscriptions include every new feature as it ships. Perpetual is a one-time payment for the current release.
Monthly
$39.99
per license seat · billed monthly
- Full access
- All upcoming features
- Minor updates and fixes
- Machine-tied, transferable
Choose your plan and quantity in portal billing
Annual Best value
$439.99
per seat per year · about one month free
- Everything in monthly
- About one month free against monthly
- Billed once a year
- Machine-tied, transferable
Choose your plan and quantity in portal billing
Perpetual
$1,499.99
per seat · one-time · current release
- Full access to Pixosight
- Minor updates and patches
- Machine-tied, transferable
- Upcoming features and new versions
- Future major upgrades
Upgrade paths available by inquiry
Secure checkout through your portal account · Choose seat quantity in portal billing · Full comparison and FAQ
Try it with your own setup.
30 days free. No card required; purchase separately when ready. The quickest way to find out whether your camera and your parts work the way you need.
